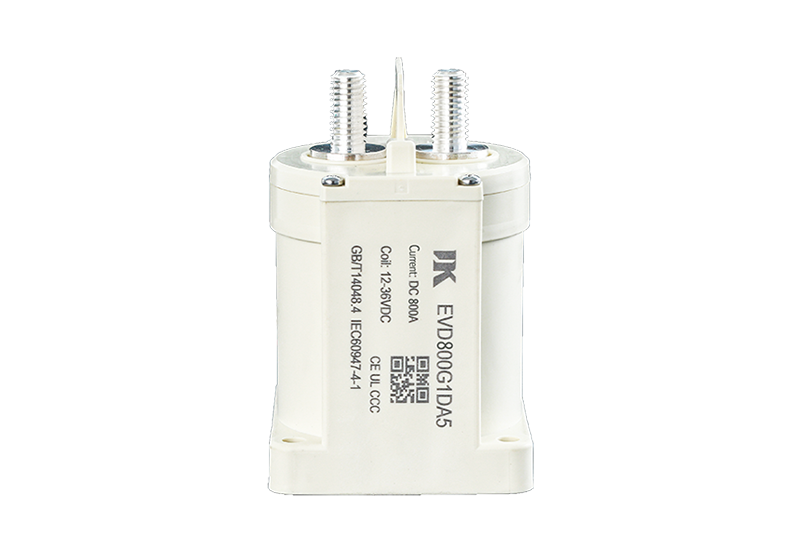

Product Parameters
Contact Arrangement： | SPST-NO |
Auxiliary Contact： | SPST-NO（optional）,≤100mΩ |
Voltage Rating： | 12-1500Vdc |
Current Rating： | 800A |
Coil Voltage： | 9-36V dc |
Coil Power ： | Initial：3.2A Max |
Main Contact Mounting： | M10 External thread |
Dimensions： | 78.1×66.6×104.5mm |
Weight ： | ≈990g |
Operating Temperature : | -40～+85℃ |
Altitude： | ≤4000m |
